Machine Features






1.XYZC four axis, C axis 0 to 360 degree automatic rotation.
2.GANGER control system,the cutting process is automated and programmed.
3.Smart CAMERA /NESTING/Vacuum moving system.
4.Table tilts 85 degree to load slabs easily.
5. Whole steel structure machine body ensuring high stability.
6. Running stability, high precision, high speed.
7. Compact and rational design, small size machine, convenient to handle and move
8. With Automatic loading and unloading device



Applicable Industry & Material






Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.



Technical parameters
Model GQ-3220BS
X/Y/Z Axis working size 3200*2000*200mm
Diameter of blade 350mm
Working table size 3200x2000mm
Rotation speed of blade 2800-6000rpm
Blade motor power 11KW
Total power 25KW
Chamfer 45°
C axis rotation angle 0°- 360°
Table Tilting angle 85°
Control system GANGER
Gross weight 4500KGS

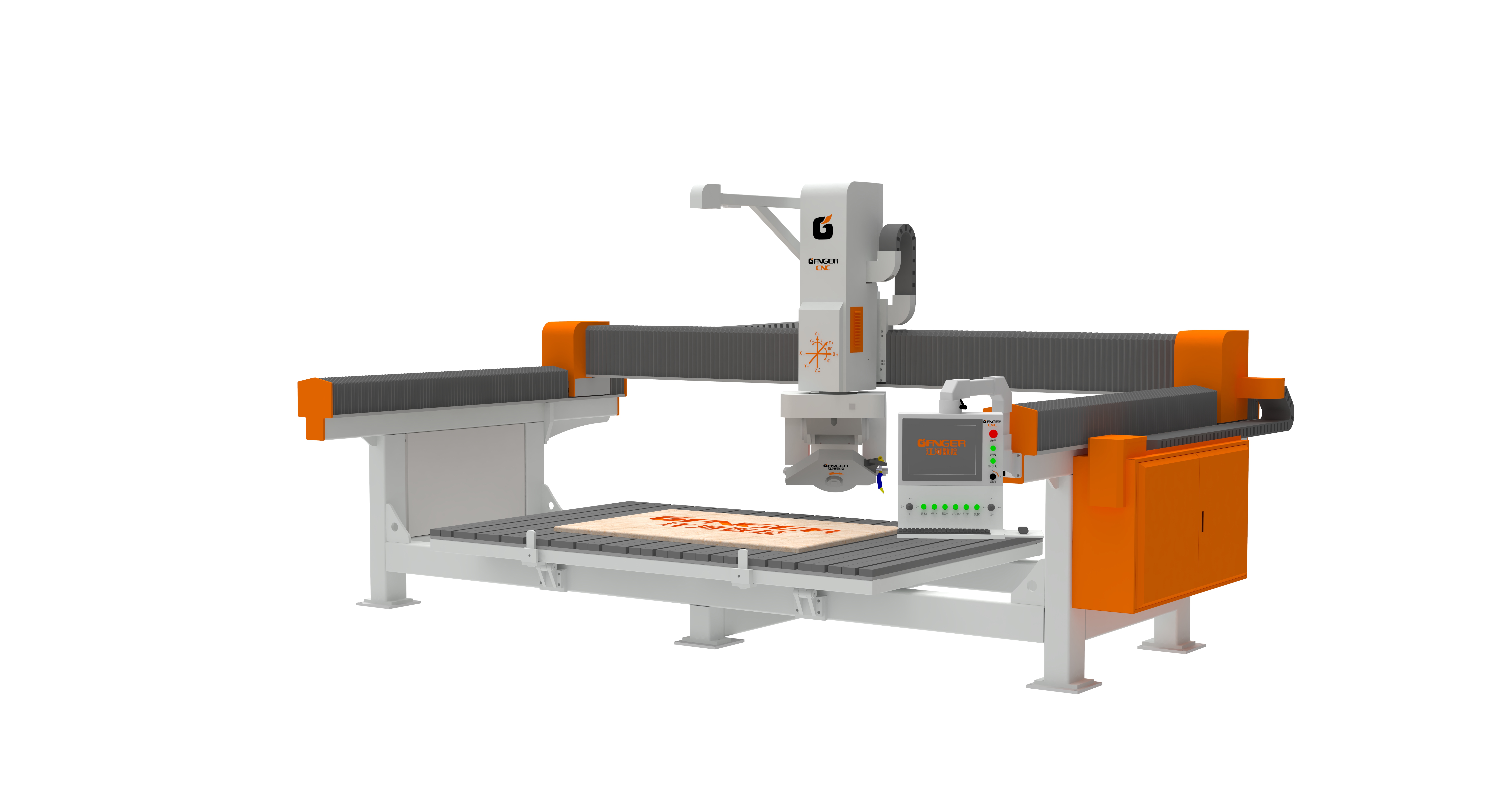

4 Axis Bridge Cutting Machine GQ-3220BS
